- Fast installation
- No metal-to-metal contact
- 2.5 minute inspection using Quick Check® Heavy Duty spec
- No additional software or hardware required
Patented, Optional
Hunter WinAlign® HD Alignment Machine
Perform fast and accurate multi-axle truck alignments
Hunter WinAlign® HD
The unmatched standard in heavy-duty wheel alignments
Award-winning, patented WinAlign® HD alignment software
Get 3-axle alignment readings in just 3 minutes
Rolling compensation with no jacking required
Quickly diagnose tire wear conditions
QuickGrip® wheel adaptors provide fast, protective installation
Effortless rolling compensations with powered truck pusher
Versatile turnplate and workspace options available
Thomas Tire relies on Hunter to maintain trust with HD and commercial customers
Sally Thomas, Co-Owner of J.P. Thomas & Co., Inc., relies on Hunter heavy-duty equipment at all of their Thomas Tire locations to meet any service challenge that comes their way. Building and maintaining customer trust as well as technician retention are key benefits.
Learn more
Bergey’s doing a “crazy amount” of alignments with Hunter Quick Check® Commercial
Steve Forde, Regional Operations Manager of Bergey's Truck Centers in Philadelphia, PA values the reputation they have with their commercial customers on providing the best service possible with Hunter heavy-duty equipment and the time-savings from their new Quick Check® Commercial system.
Learn more
WinAlign HD Alignment System - Tractor on Turnplates
Hunter Heavy Duty customers can now diagnose tire wear conditions in 1/3 of the time. New technology from Hunter Engineering provides accurate, 3-axle wheel alignment readings in just 4 minutes.
Faster setup, faster results
3-axle alignment readings in 3 minutes
Minimal setup time

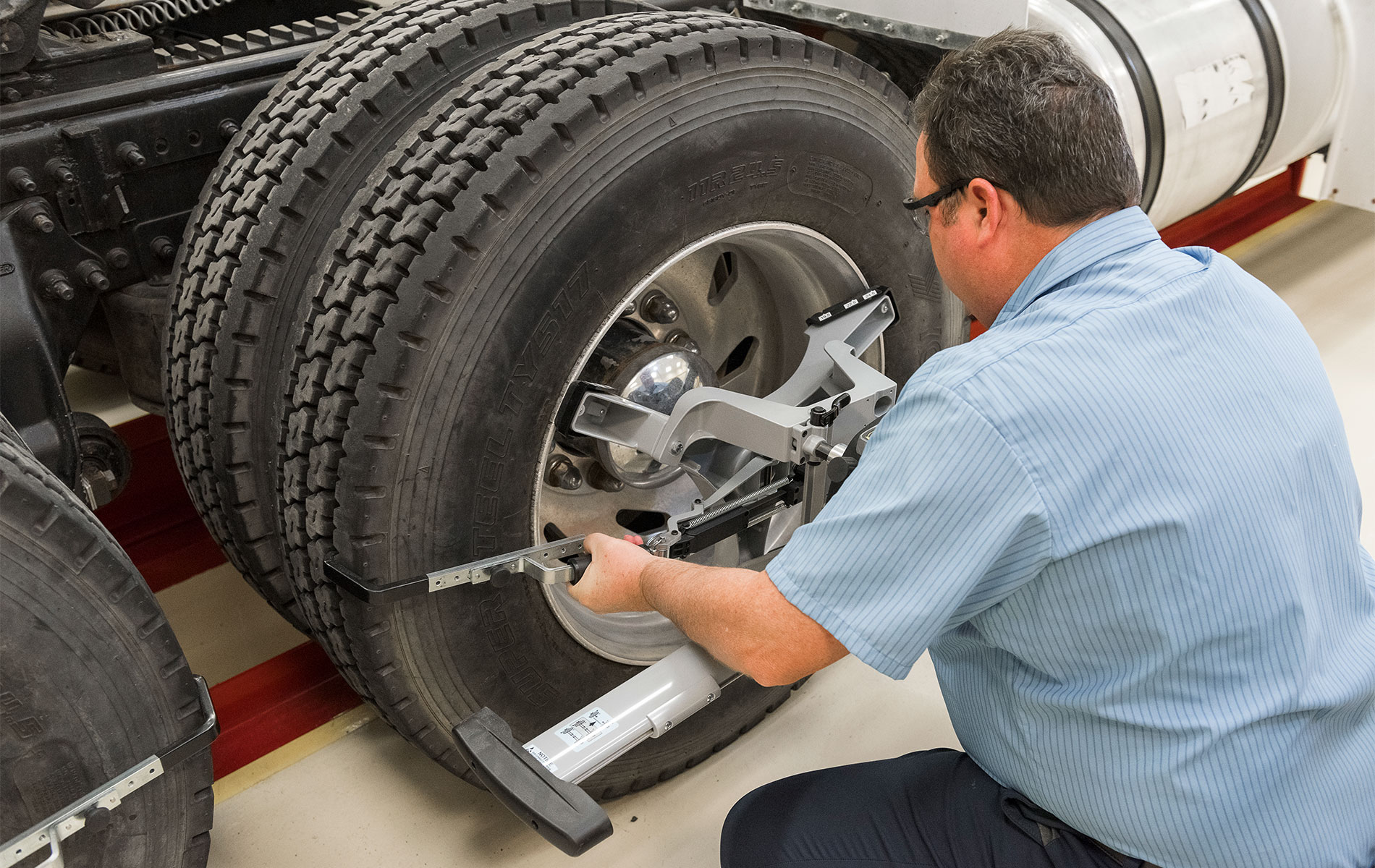

HD QuickGrip® Adaptors allow for fast installation and no metal-to metal contact.
The fastest procedure
Hunter can capture heavy-duty wheel alignment readings in three minutes.
Fast printouts
Easy-to-understand printouts help sell service.
DSP760T Sensors
Hunter's DSP760T heavy-duty alignment sensors reduce setup time and provide accurate alignment readings.
See all six sensors live to measure alignment angles and diagnose tire wear conditions.
Shown with QuickGrip® adaptors
QuickGrip® adaptors
Rugged design
- Lightweight & durable
- Cordless operation
- Hot-swapable batteries
Trailer alignment
- Align without unhooking from tractor
- Align using optional kingpin adaptor without tractor
- Accurate to 600 inches
Patent pending
Self-Centering Adaptors
- High versatility for trucks and buses with low-hanging bumpers or air dams
- Fits wheels 15 to 28 inches in diameter
Standard
Make rolling compensation easy
Hunter's truck pusher allows technicians to effortlessly move the truck from the rear axle for rolling compensation.
- Small & convenient for technicians
- Powerful motor with rechargeable battery
- Double as wheel chock
Standard on WT600, Patent pending
Having trouble deciding?
Here are some tips
Send a message to your local Hunter business consultant to receive a free pricing quote or product demo.
Skip steps and hassles that other systems require.
No cables
Cordless sensor operation with hot-swapable batteries keeps the work area free of tripping hazards.
No jacking
Short rolling compensation allows technicians to compensate all sensors at once.
No turnplate pins
Lock or unlock all PowerSlide® turnplates from the console.
Save valuable shop time
- Position vehicle
- Select vehicle
- Mount sensors
- Roll forward to compensate
- Steer caster
- Print results
3:00 total
0 axles jacked to compensate
0 sensor movements
81 total walking steps
0 additional minutes required before adjustment
Make your shop time count. Check truck alignment angles in just 3 minutes.
Unmatched software
Patented technology maximizes productivity in your alignment bay
Vehicle-specific
Procedures guide your technicians with step-by-step instructions specific to the vehicle.
Patented power tools
Procedures designed so you can complete the work accurately the first time, every time.
Light-duty vehicles
Additional features included for servicing light-duty vehicles
Six Sensors Live
See three axles live with all measurements at once. Reduce setup time through minimal sensor movement.
ExpressAlign®
Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.
60+ Axle Configurations Possible
WinAlign® HD software supports more than 60 customized truck, trailer and bus alignment procedures as well as passenger car and light truck alignment.
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.
Rear Axle Adjustment
Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try.
Patented
Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.
Patented
Frame Offset Angle
Measure frame offset angle and calculate adjustments to frame centerline, if a frame reference alignment is needed.
Adjustment Videos
Strengthen technician competency and extend profit opportunities with helpful adjustment videos.
Your local Hunter service representative can answer questions, help with equipment operation and provide on-site training.
Purchase genuine Hunter replacement parts online
This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use
Turnplate options
Perform alignments in your workspace
Surface-Mount
Utilize an existing pit- Permanent installation
- Easily accomodates existing pits, no need for a rack
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Rack-Mount
Enhance your rack- Compatible with Hunter HD alignment pit rack models
- Perform Quick Check®s and alignments more easily
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in bridges for rolling compensation
Flush-Mount
Great for new construction- Level profile — reduces tripping hazards
- Provides clean installation and smooth approach
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Portable
Ultimate versatility- Perfect for multiple bays or multiple steer axles (additional sets required)
- Mobile alignment service
- 22,000 lbs. (10,000 kg) per axle
HunterNet® online business tools
Provide complete, accurate information for your customers and your shop
Set goals
Easy-to-understand report measures output, opportunities & achievements
Identify Opportunities
Easily see shop performance over time and ensure utmost utilization
Maximize productivity
Automatic, daily delivery via email and text
Set goals and track productivity
- Automatic daily snapshots in addition to a 7-day overview of performance trends
- View inspection rates and opportunities
- Measure alignment numbers and conversions
- Track balancing and road force® utilization
Communicate results and maintain customer data
- Save & recall vehicle results
- Allow customers to view results online
- Provide results to other business to validate warranties or insurance claims
Automatically display inspection results
- Provide complete transparency
- Simplify communication
- Sell more alignment service
Calculate your return on investment from the WinAlign® HD alignment system
Hunter Finance™
Powered by GreatAmerica Financial ServicesFinancing is a great way to lower your upfront cost, and get immediate return on investment. Hunter Finance™ financing options are facilitated by GreatAmerica Financial Services.
- Simpler and faster process than a traditional loan
- 25+ years financing the automotive industry
- Knowledgeable about your specific needs
Annual finance amounts in ROIs are estimates and subject to credit approval by GreatAmerica Financial Services.
Hunter Credit™
Powered by EasyLease Express™Financing is a great option to lower your upfront cost, and get immediate return on investment. Hunter Credit™ financing options are facilitated by EasyLease Express™.
- Same day approvals
- Expense your lease payments to lower your taxable income
- Industry focused with knowledge about your specific needs
Annual finance amounts in ROIs are estimates and subject to credit approval by EasyLease Express™.
