- 18,000lb capacity
- 26" wide runways
- 223" deck length
Walk-around convenience plus high capacity
Alignment Rack
ALIGNMENT PIT RACKS
WALK-AROUND CONVENIENCE PLUS HIGH CAPACITY
Hunter’s pit racks are 18,000-lb. capacity and provide feature two 9,000-lb. capacity swing jack. 4-wheel alignment wheelbases up to 158-in. can be serviced. 2-wheel alignment wheelbases are limited only by the space behind the rack as rear axles can rest on approach concrete.

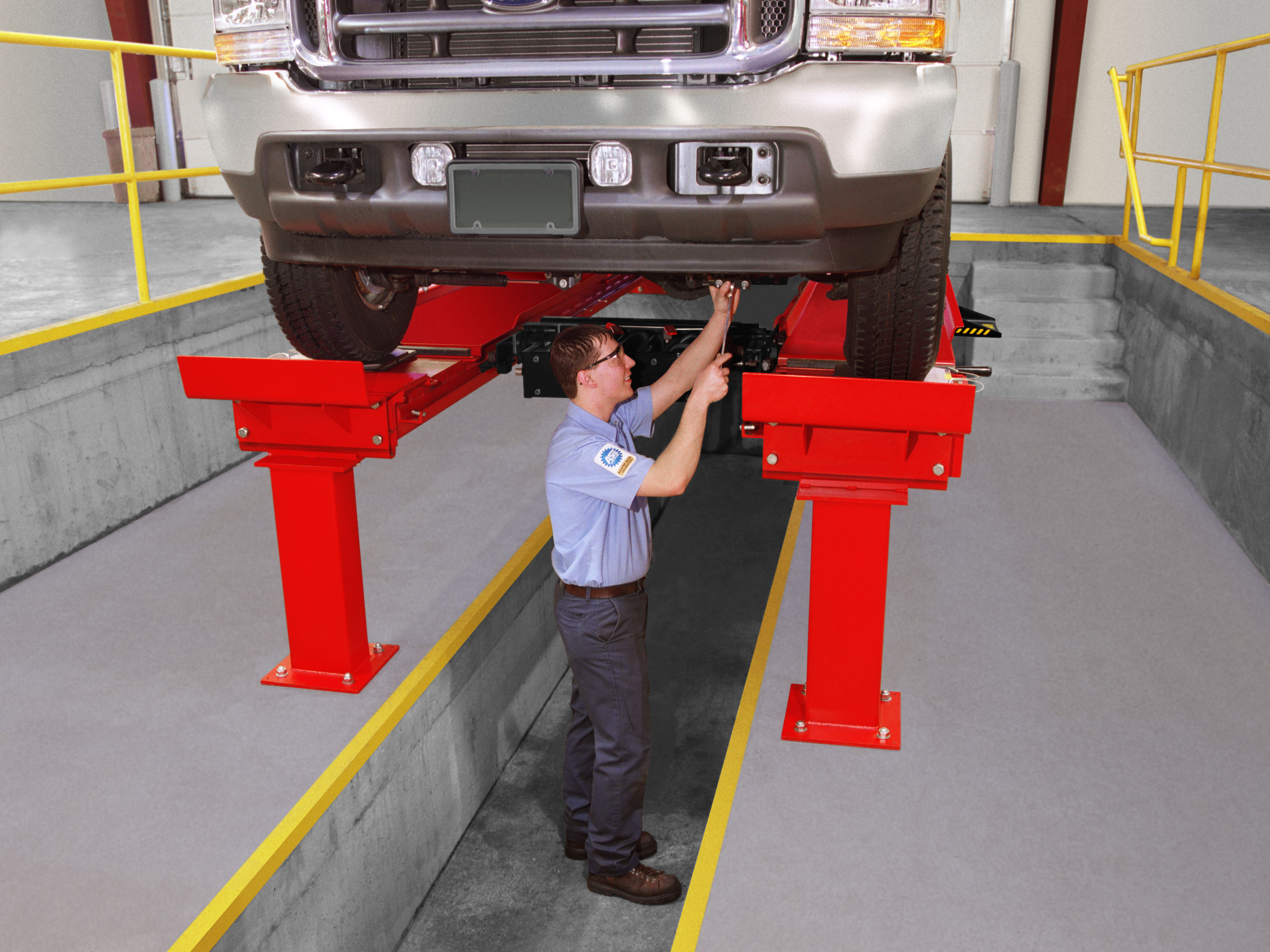

A deep center allows easy access underneath of vehicles, while a walk-around shallow pit provides easy use of alignment instrumentation.
FEATURES AT-A-GLANCE
-
Wide runways ease service of large vehicles
-
Stainless steel turnplates standard
-
Built-in slipplates standard
-
36" pit depth
SPECIFICATIONS AT-A-GLANCE
-
18,000 LBS.Capacity
-
2 x 9,000 LBS.Capacity jacks
-
26"Wide runways
-
223" OR 255.5"Runway lengths available
PRODUCT FAMILY AT-A-GLANCE
P451
P451L
- 18,000lb capacity
- 26" wide runways
- 255.5" deck length
PIT RACK FEATURES
1
2
3
4
WALK-AROUND PIT
Saves time spent raising and lowering lift
WIDE VEHICLE COVERAGE
18,000lb capacity, 26" wide runways, and up to 255.5" deck lengths, plus concrete allows the longest vehicles to be serviced.
BUILT-IN SLIP PLATES
88" to 158" for 4-wheel alignments
OPTIONAL POWERSLIDE
One touch locking and unlocking of turnplates and slipplates.
1
2
3
4
AIR LINE KIT
Air supply to jacks and auxiliary ports standard
SWING JACK EQUIPPED
Two 9,000lb capacity swing-air jacks are standard
STAINLESS STEEL TURNPLATES
For a lifetime of easy and accurate alignments

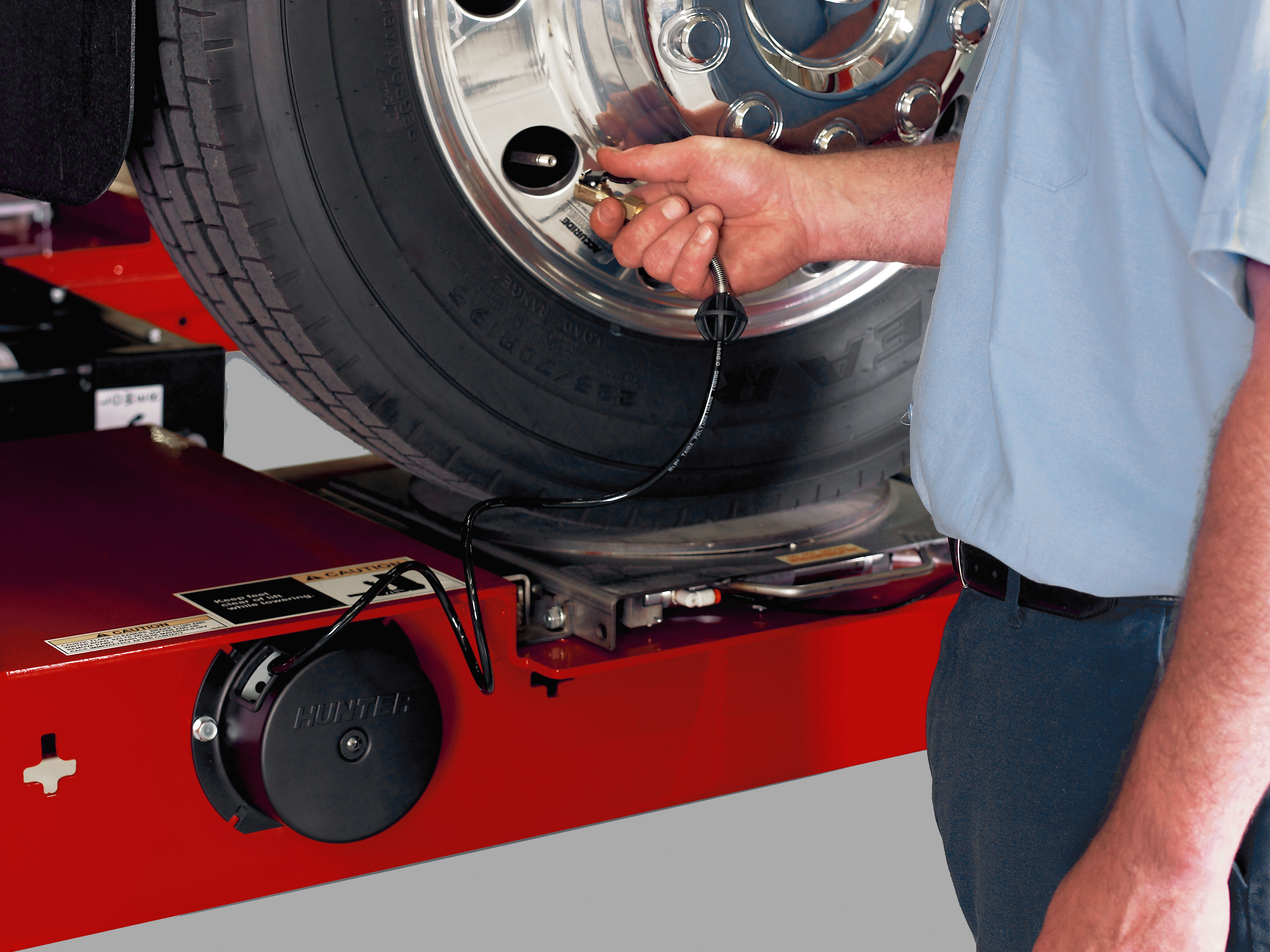

OPTIONAL INFLATION STATION
Inflate all four tires to specification, at the same time.
Specifications
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Documents
-
Brochures
-
Specification Sheets
-
Accessories
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
