Quickly & easily clamp assemblies with no damage to the wheel
Safe and fast tire changers for big tires
Hunter Heavy-Duty Tire Changers
/
Heavy-Duty
Heavy-Duty Tire Changers
Powerful tire changers for big tires
Whether your need is a capable, efficient machine for semi-truck tires, or a tire machine that will change skidder tires, Hunter has a model to suit. The TCX635HD outpaces any tire changer for over-the-road truck tires with none of the fatigue and safety risk of bars and hammers. The TCX645HD can do all that, plus handle implement tires up to 90 inches in diameter.
Features at-a-glance
-
Tulip-style wheel clamp
-
Safe controls
-
Roller Demounting
-
Standard Hook
Product family at-a-glance
TCX635HD
Extra torque, extra speed- 14.5 - 24.5 in. rim diameter
- 3.94 in. min rim hole diameter
- 58 in. max tire diameter
- 27 in. max width
- 1,545 lbs. max weight
- 9 rpm CW & CCW
- 208-240V, 1ph, 60Hz, 20A
TCX625HD
For over-the-road assemblies- 14.5 - 24.5 in. rim diameter
- 3.94 in. min rim hole diameter
- 55 in. max tire diameter
- 27 in. max width
- 1,545 lbs. max weight
- 7 rpm CW & CCW
- 208-230V, 1ph, 60Hz, 20A
TCX645HD
Truck tires to skidders- 14 - 46 in. rim diameter
- 3.94 in. min rim hole diameter
- 90.5 in. max Diameter
- 42 in. max width
- 2,200 lbs. max weight
- 10 & 5 rpm CW, CCW
- 230V, 3ph, 60Hz, 26A
See them in action
TCX635HD Tire Changer + HD Elite™ Balancer
See the easy-to-use features of the Hunter TCX635HD tire changer that help technicians properly service heavy-duty wheel assemblies.
TCX645HD Quick Ops-Road Wheels
Watch the process of demounting and mounting road wheels on the Hunter TCX645HD heavy-duty tire changer.

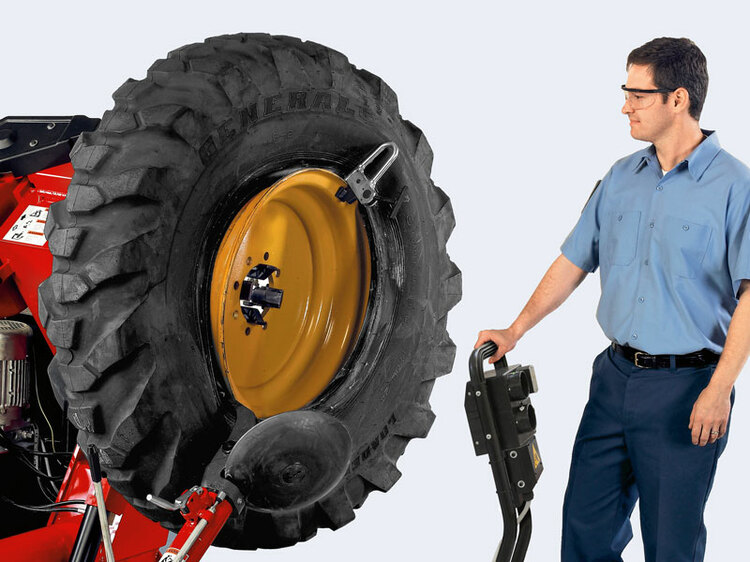

TCX645HD Quick Ops-Skidder Wheels
See how easy it is to properly and safely service skidder wheels on the Hunter TCX645HD heavy-duty tire changer.
TCX635HD Features
Operator-friendly design
- Low risk - No hammers, no bars, no lifting very heavy tires
- Low service height - Easy to roll on and no fear of tire falling off during demounting
- Optional ramps - Popular "plus" model includes ramps, and mounting bar
Superior wheel accomodation
- Easy match mounting - Rotate tire on rim when needed for the smoothest ride
- Specialty rim friendly - Standard hook can be used to mount and demount challenging tires and rims without fear of damage
- Simple controls - Easy to use levers control all operations in a convenient and safe operator position
- Versatile jaws - Secure small center holes, thick wide based allow wheels, centerless wheels, and much more
Powerful tools to assist
- Fast and easy rollers - Most tires can be pushed on and off, no switching tools
- Inner "drop roller" - Speeds service times, never a need to remove to make room
- Hydraulic carriage - Maximum power and fast tool positioning
Tulip-style clamp
All-in-one controls
Houses all user operations, pivots to allow flexibility, and height is adjustable (two positions)
Bead-breaking rollers
Quickly & easily break tire beads with no wheel damage. Drop roller saves time.
Technician safety
Easily service special assemblies
Use the standard hook attachment to mount and demount tubed or sharp edged wheels, or other more difficult assemblies.
Match-mounting is easy!
When combined with Hunter's heavy-duty wheel balancers, the heavy-duty tire machines provide match-mounting capability for achieving the smoothest possible ride.
TCX645HD Features
Operator-friendly design

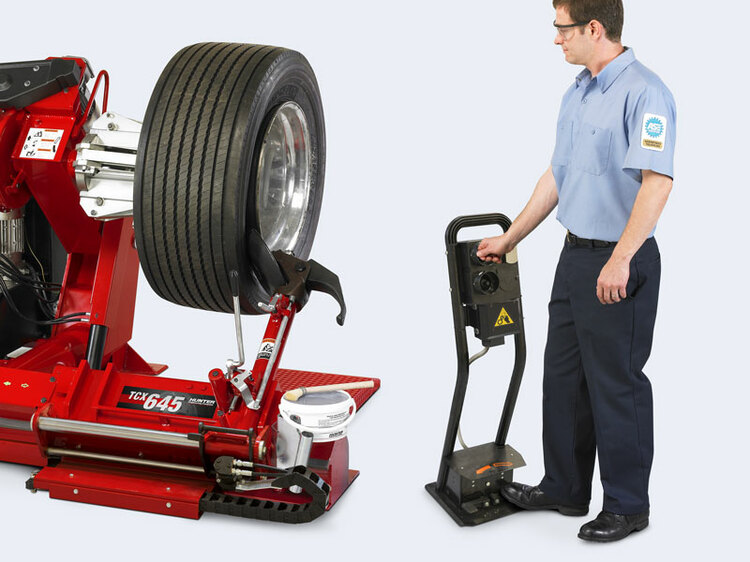

- Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
- Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies
Superior wheel accomodation
- Versatile jaws - Clamp center holes as small as 3.94 in, or rims as large as 46"
- Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
- Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage
Convenient functions
- Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
- Speed carriage quickly - Shuttle the carriage from front to rear of the rim
- On-board storage - Keep standard and optional accessories organized
Tire cutter attachement
Quickly and easily cut apart foam filled tires for disposal.
Pedestal control unit
Integrated tool storage

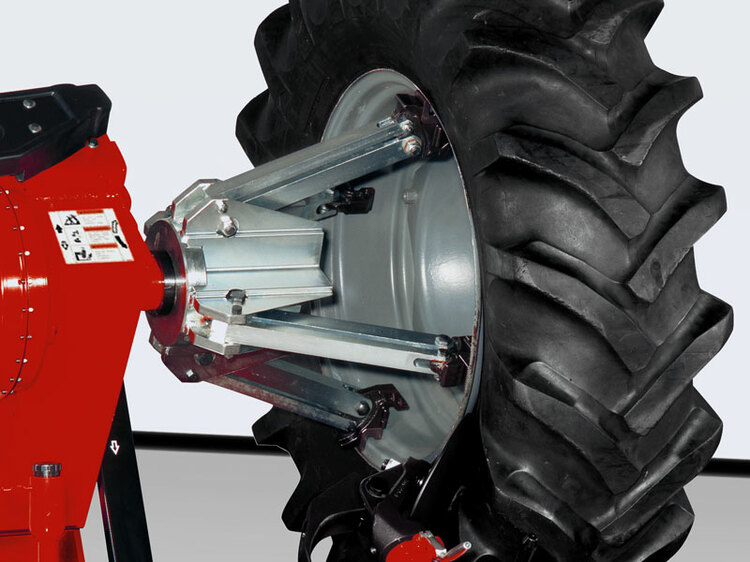

Tulip-style clamp
Mount & demount with ease
Tractor, implement and other specialty wheel assemblies are serviced using the same tools and techniques.
Send a message to your local Hunter business consultant to receive a free pricing quote or product demo.
Specifications
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Your local Hunter service representative can answer questions, help with equipment operation and provide on-site training.
Purchase genuine Hunter replacement parts online
This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use
Having trouble deciding?
Here are some tips

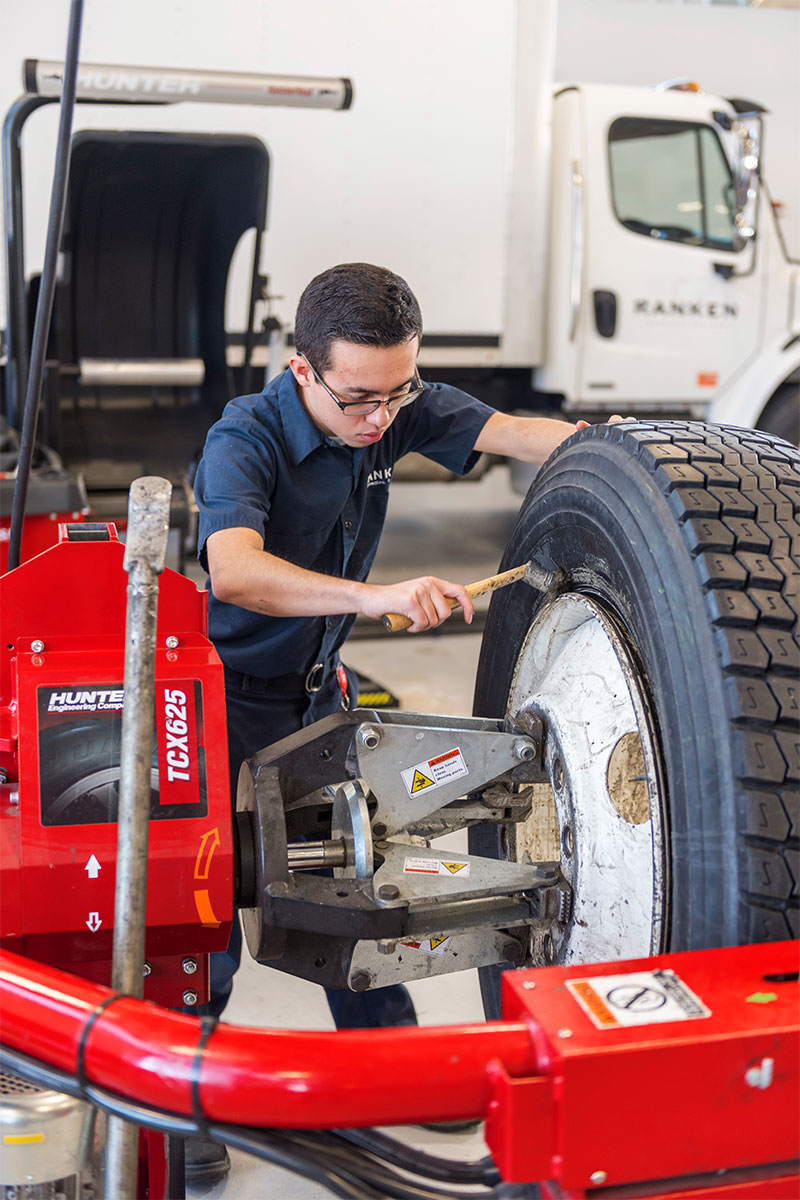

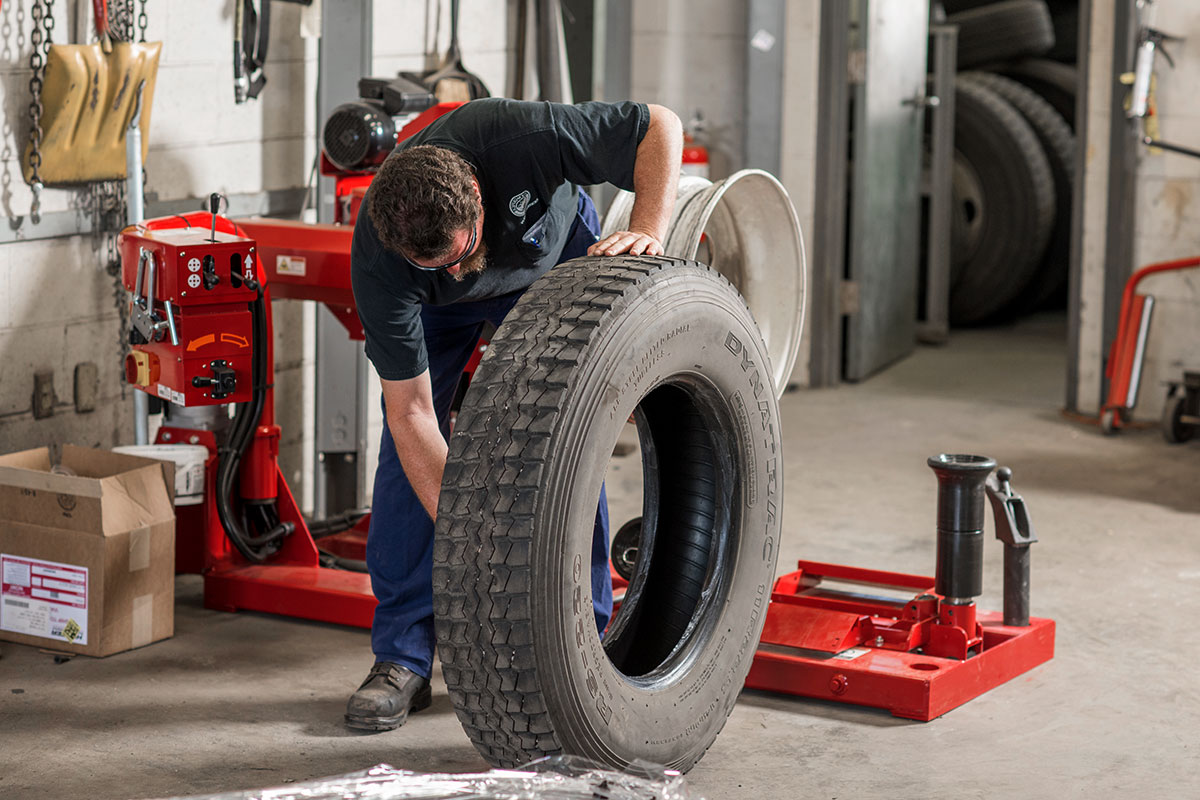

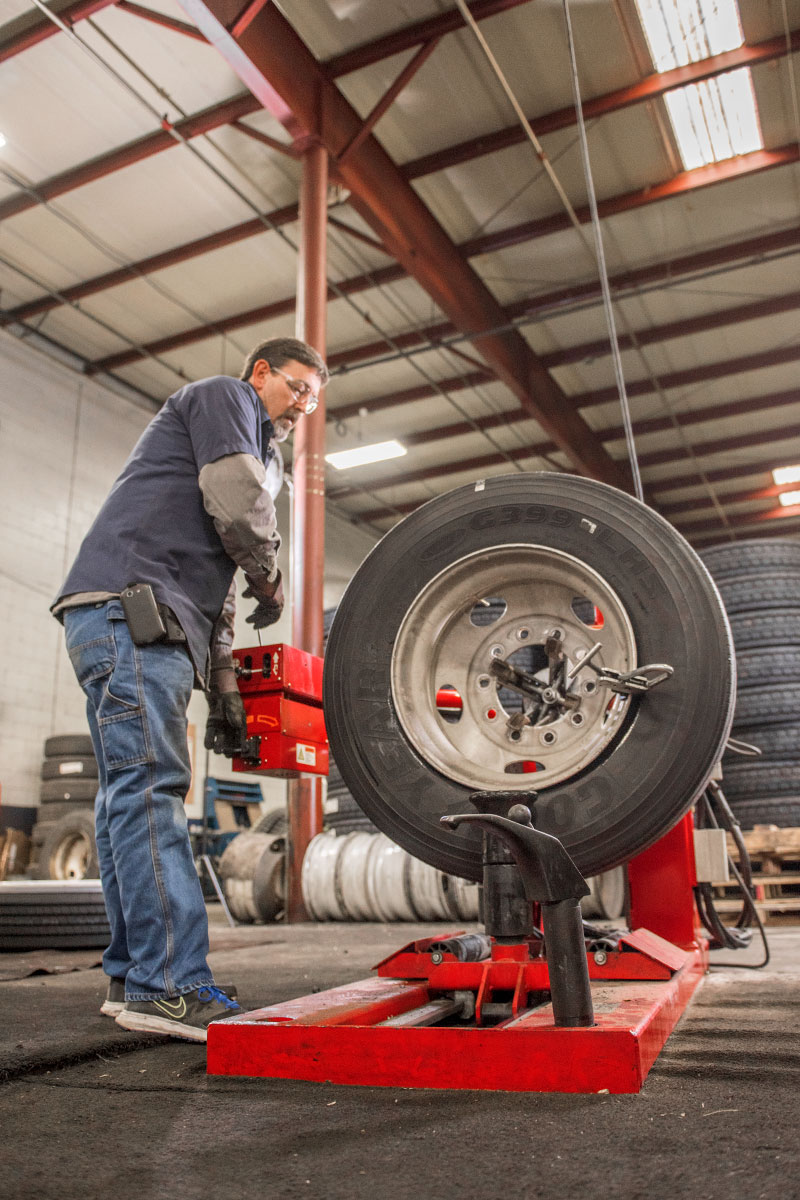

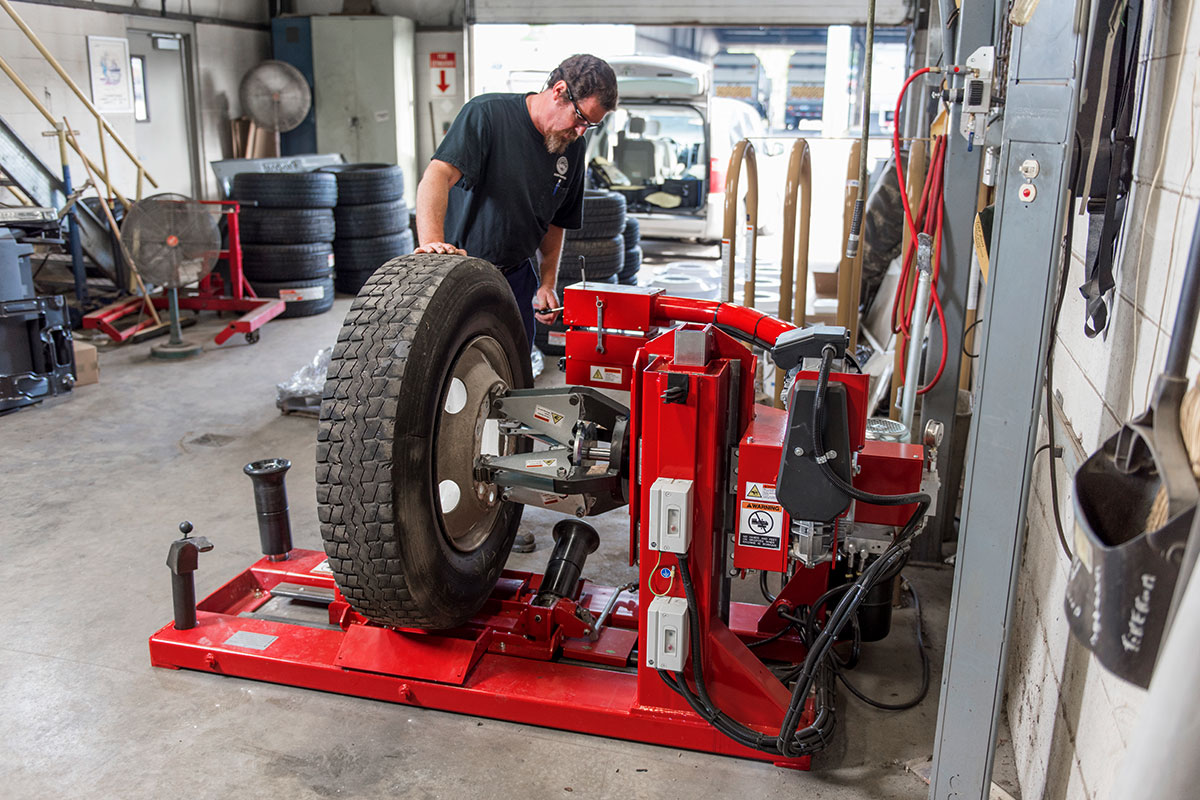

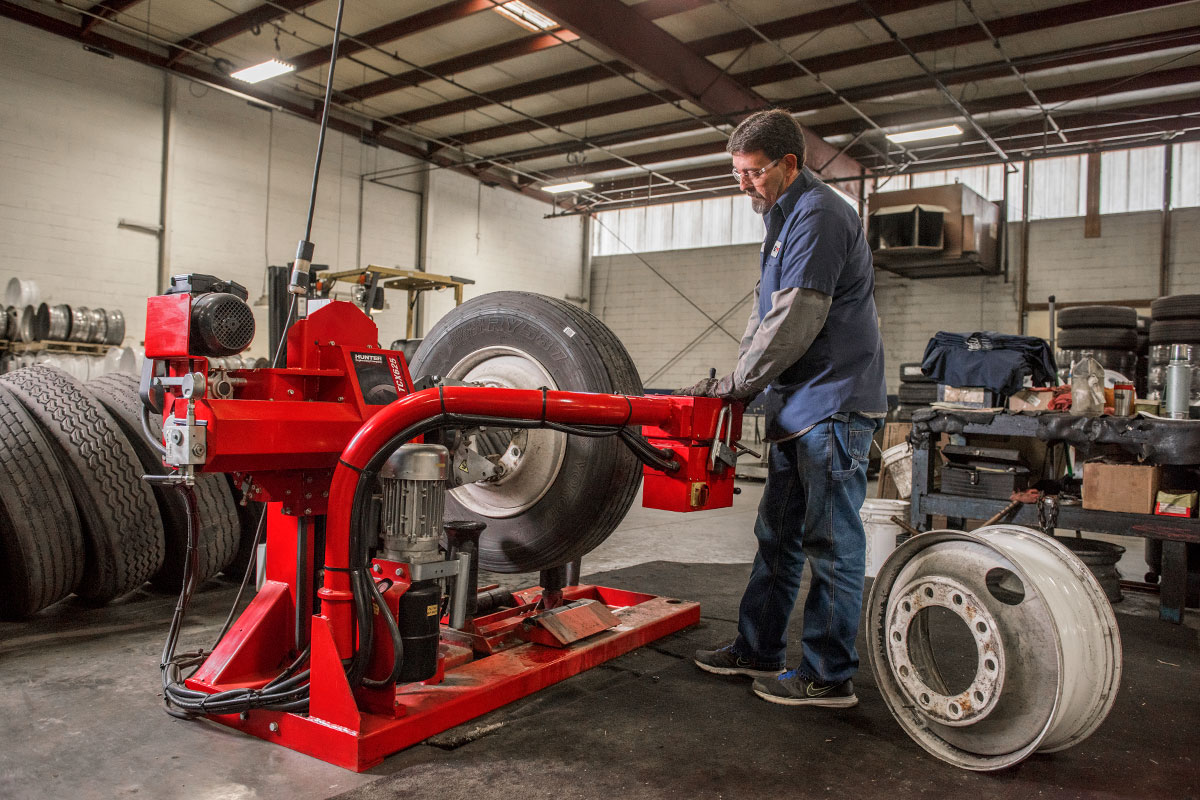

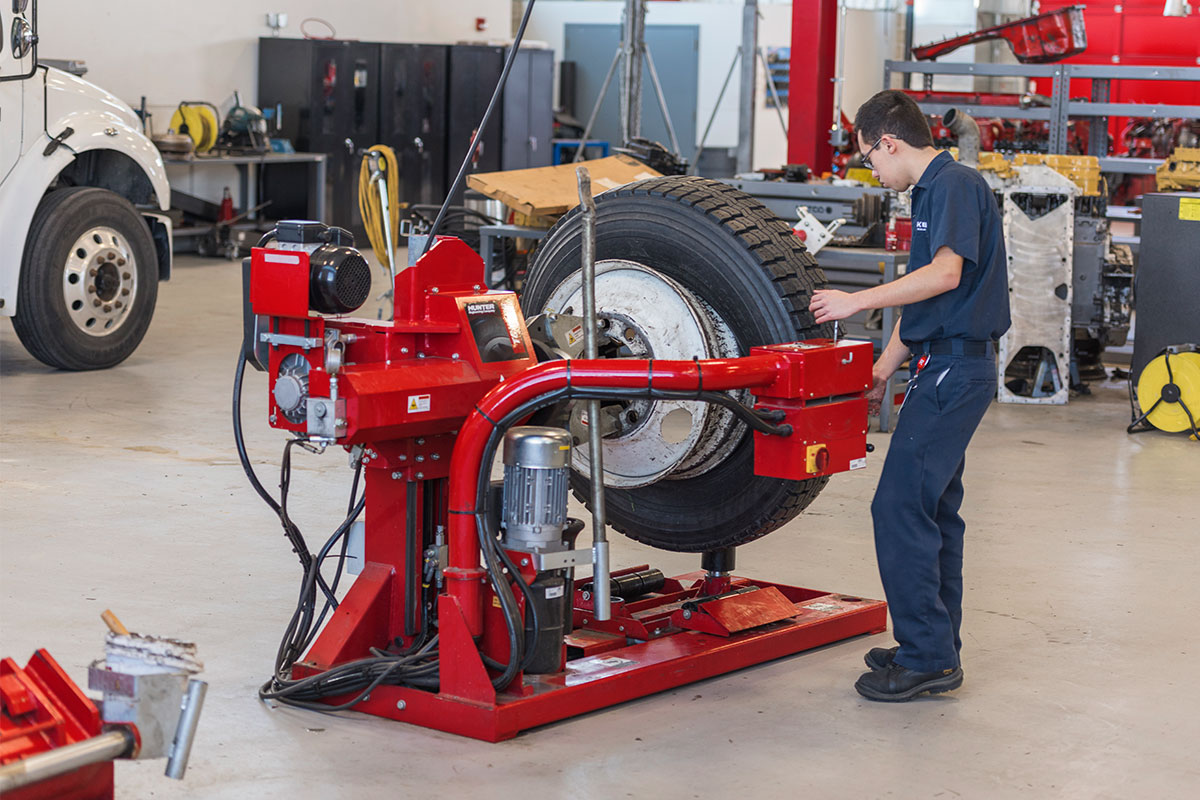

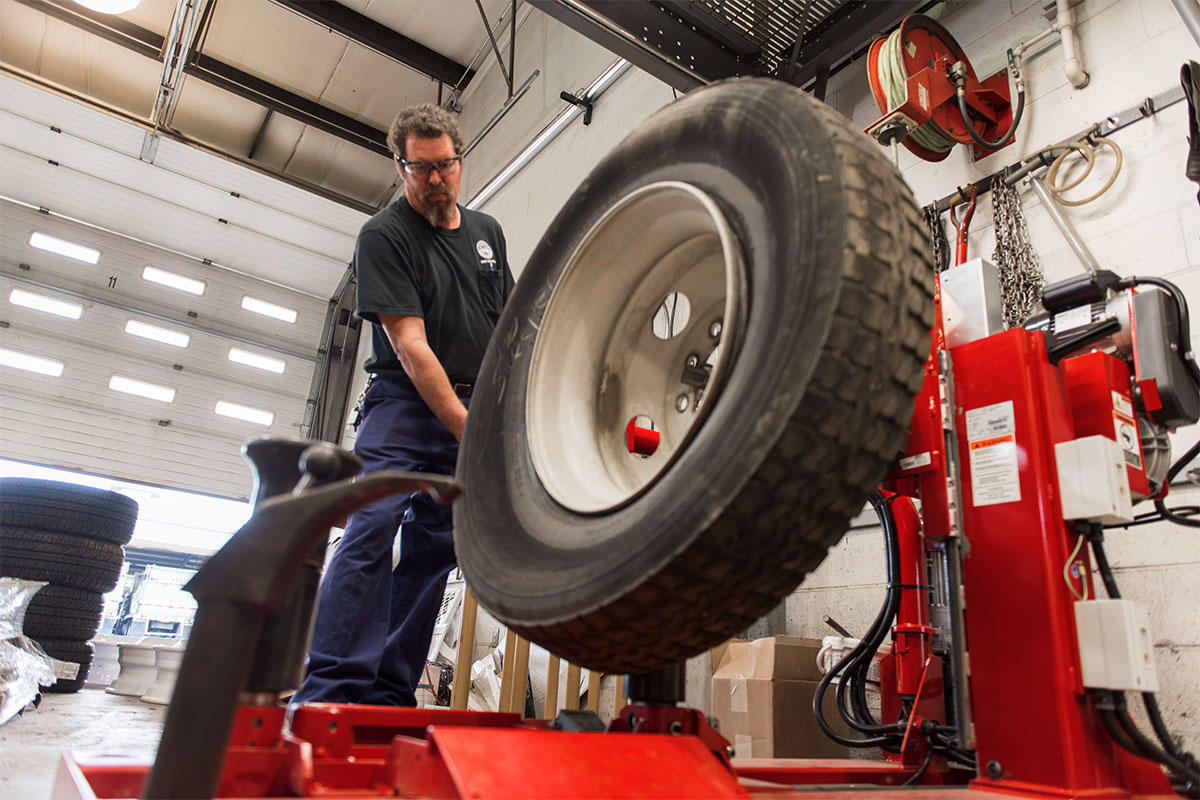

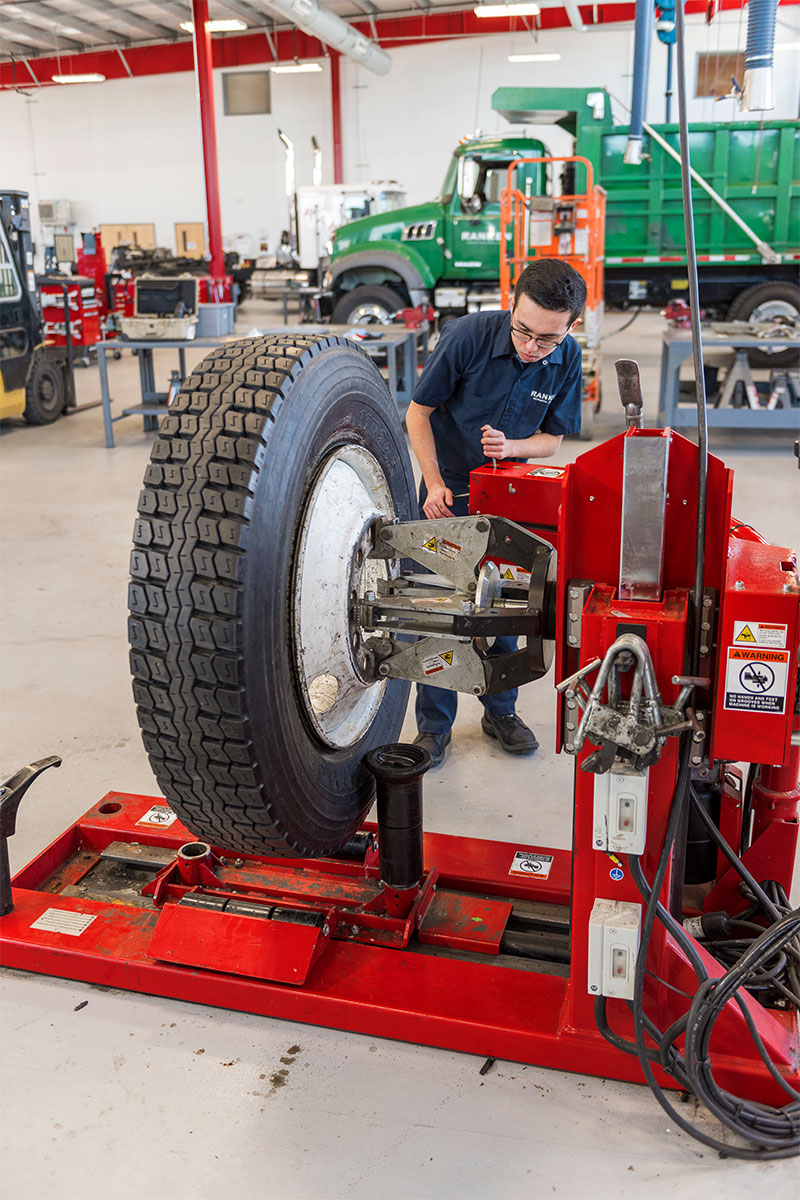

See how other shops are using them
Take the strain out of your heavy-duty wheel service today
Documents
-
Brochures
-
Specification Sheets
-
Accessories
Hunter's 3-Year Warranty
We stand beside our equipment and your purchase.
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
