Consistent service times, fewer technician decisions and autonomous WalkAway™ mode makes tire service on the Hunter Revolution™ simpler than ever.
Simple operation, superior wheel protection
Hunter Center-Clamp Tire Changers
Center-Clamp Tire Changers
Simple operation, superior wheel protection
Hunter offers four models of center-clamp tire changers for any need. From the popular three button leverless Auto34 to more basic models, damage free operation is attainable for all budgets
Features at-a-glance
- Leverless and traditional options
- Center-shaft clamping
- Cam plate tightens under torque
- Adjustable height mounting
Specifications at-a-glance
-
860 ft-lbs.Torque
-
0-14+ rpmVariable Speed
-
26 & 34 in.Max Rim Diameters
-
19 in.Max Rim Width
Product family at-a-glance
Auto34R
Three button operation- 10-34 in. Capability
- Leverless polymer head
- Telescoping chassis sets diameter
- High-volume blast tank
- Dual roller arms
- Automatic indention
- Standard press arm
- Standard wheel lift
Auto34S
Three button operation- 10-34 in. Capability
- Leverless polymer head
- Fully synchronized arms
- Dual roller arms
- Automatic indention
- Standard press arm
- Standard wheel Lift
TC37
Powerful and traditional- 10-26 in. Capability
- Standard polymer head
- Dual roller arms
- Manual indention
- Standard press arm
- Optional wheel lift and side shovel
See them in action
TC39 Tire Changer
Easy-to-use center-clamp tire changers with premium leverless demounting. The intuitive center-clamp system uses a simple clamping technique with three height positions.
TC37 Tire Changer
Easy-to-use conventional center-clamp tire changer with bead press arm to assist in mounting of difficult assemblies. Optional wheel lift eases servicing of large assemblies.
TC3300 Tire Changer
The TC3300 center-clamp tire changer allows for fast, simple clamping of popular wheel designs.
Did you know?
73% of assemblies today are considered difficult-to-service
Low-profile, run-flat, large diameter and heavy assemblies require skilled technicians when using conventional tire changers.
Being equipped with the most advanced, technology on the market today allows the equipment, instead of the technician, to eliminate fitment challenges.
Auto34 Exclusive Features

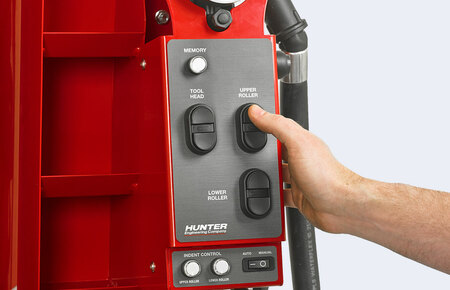

Simple controls
Auto34S features three button operation
Automatic Indention
Simplifies and speeds bead loosening
Memory Funciton
Quickly returns toolhead to preset location
Synchronized Arms
Adjust all diameter functions at the same time
Make wheel servicing safer and easier
Leverless polymer toolhead
TC39 & Auto34R
- No scratch polymer head functions as its own lever
- Head is wide and thin for very low mounting stress
- Head does not ride on the wheel face for scratch free operation
Conventional mounthead
TC37 & TC3300
- Durable polymer head for use with traditional levers.
- Prevents wheel damage and follows the rim edge, no diameter adjusting needed.
- Locks in vertically for clad wheel protection (TC37 only)
Powerful press arm
Auto34R, TC39 & TC37, optional on TC3300
- Assists mounting toughest tires
- Demounting assistance for runflats
Dual bead rollers
Auto34R, TC39, TC37
- Easy bead loosening
- Lower roller demount bottom bead, making heavy tires managable
- Dual rollers essential for match mounting and bead massage
Secure wheels with no damage
Center-clamp
- Grip from the strongest part of the rim
- No teeth to damage rim
Cam plate
- Tightens just as much as needed to grip wheel
- Three adjustment heights adapt to all wheel types
Flange plates (optional)
- Two options for clad wheels and reverse wheels needing extra protection
Protect your customers' wheels today!
Contact your local Hunter representative to get a free quote.
Ease-of-use features for technicians
Wheel lift (Auto34R)
Standard on Auto34R
Pick and place lift makes lifting and clamping heavy assemblies easy
Wheel lift (TC models)
Optional on TC39, TC37 & TC3300
Simplifies lifting heavy assemblies. Safe and away from work area.
PowerOut side shovel
Optional on TC37 & TC39, standard on TC3300
Break beads efforlessly to make tire service easier.
Blast inflation
Handheld air blast nozzle directs burst where needed to seal beads.
Additional features
Variable speed
- 0-14+ rpm forward speed is infinitely variable
- Slow speed for reverse
Powerful drive
860+ ft-lbs of torque won't stall on tough assemblies
Did you know?
Bead massage reduces wheel vibrations
Bead massage reduces road force vibration by an average of seven pounds. Some assemblies can see road force reductions well over 20 pounds!
To bead massage you need a dual bead roller center-clamp tire changer. While still clamped, inflate the tire to OEM recommended pressure and refit the core. One at a time, bring the bead roller against the sidewall of the tire at the rim edge and press approximately 1/4 inch into the tire. Rotate two or three revolutions for each bead.
Bead massage takes less than a minute, but can significantly reduce road force, a leading cause of vibration.
- Get a free quote or on-site demo
- General information & questions
This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use
- Get a free quote or on-site demo
- General information & questions
This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use
Having trouble deciding?
Here are some tips
See how other shops are using them
Equip your shop with match-mounting capabilties.
Eliminate wheel vibrations by pairing the tire machine with a Road Force® Elite wheel balancer. Get a free quote from your local Hunter representative.
Documents
-
Brochures
-
Specification Sheets
-
Accessories
Explore further
Revolution™
WalkAway™ from your tire changerWalkAway™ from your tire changer to perform other tasks while it automatically demounts the tire.
Hunter service
Largest in the industryHunter deploys the largest service force of highly-qualified representatives in the industry.
Innovation Team
Award-WinningHundreds of patented and exclusive features begin with the research and development team of mechanical, electrical and software engineers.
