Clamps quickly & easily and No damage to the wheel
Safe and fast tire changers for big tires
Hunter Heavy-Duty Tire Changers
Heavy-Duty
Heavy-Duty Tire Changers
Safe and fast tire changers for big tires
Whether your need is a fast and safe tire changer for semi-truck tires, or a tire machine that will change skidder tires, Hunter has a model to suit. The TCX625HD outpaces any tire changer for over-the-road truck tires with none of the fatigue and safety risk of bars and hammers. The TCX645HD can do all that, plus handle implement tires up to 90 inches in diameter.
- Tulip-style wheel clamp
- Safe controls
- Roller Demounting
- Standard Hook
Product family at-a-glance
TCX625HD
Fastest truck tire changer- 14.5" - 24.5" Rim diameter
- 3.94" Min rim hole diameter
- 55" Max tire diameter
- 27" Max width
- 1,545 lbs max weight
- 7 rpm CW & CCW
- 208-230V, 1ph, 60Hz, 20A
TCX645HD
Truck tires to skidders- 14" -46" Rim diameter
- 3.94" min rim hole diameter
- 90.5" Max Diameter
- 42" Max width
- 2,200 lbs. max weight
- 10 & 5 rpm CW, CCW
- 230V, 3ph, 60Hz, 26A

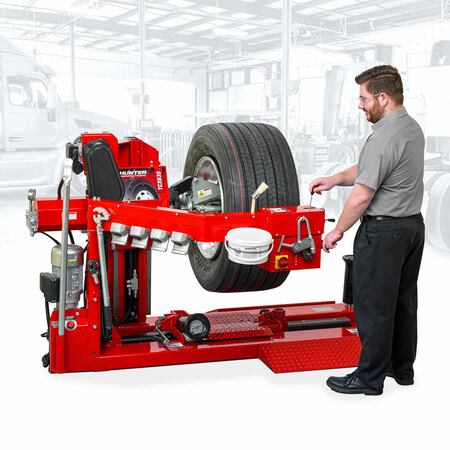

TCX635HD Features
Operator-friendly design
- Low risk - No hammers, no bars, no lifting very heavy tires
- Low service height - Easy to roll on and no fear of tire falling off during demounting
- Optional ramps - Popular "plus" model includes ramps, carriage cover, and mounting bar
Superior wheel accomodation
- Easy match mounting - Rotate tire on rim when needed for the smoothest ride
- Specialty rim friendly - Standard hook can be used to mount and demount challenging tires and rims without fear of damage
- Simple controls - Easy to use levers control all operations in a convenient and safe operator position
- Versatile jaws - Secure small center holes, thick wide based allow wheels, centerless wheels, and much more
Powerful tools to assist
- Fast and easy rollers - Most tires can be pushed on and off, no switching tools
- Inner "drop roller" - Speeds service times, never a need to remove to make room
- Hydraulic carriage - Maximum power and fast tool positioning
Tulip-style clamp
All-in-one controls
Houses all user operations and pivots to allow flexibility
Bead-breaking rollers
Quickly & easily break tire beads and no wheel damage
Technician safety
Easily service special assemblies
Use the standard hook attachment to mount and demount tubed or sharp edged wheels, or other more difficult assemblies.
Match-mounting is easy!
When combined with the ForceMatch® wheel balancer, Hunter's heavy-duty tire machines provide match-mounting capability for achieving the smoothest possible ride.
TCX645HD Features
Operator-friendly design
- Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
- Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies
Superior wheel accomodation
- Versatile jaws - Clamp center holes as small as 3.94 in, or rims as large as 46"
- Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
- Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage
Convenient functions
- Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
- Speed carriage quickly - Shuttle the carriage from front to rear of the rim
- On-board storage - Keep standard and optional accessories organized
Pedestal control unit
Integrated tool storage
Tulip-style clamp
Mount & demount with ease
Tractor, implement and other specialty wheel assemblies are serviced using the same tools and techniques.
